UV printing

HAPA AG H-237-T-1C-LR-H

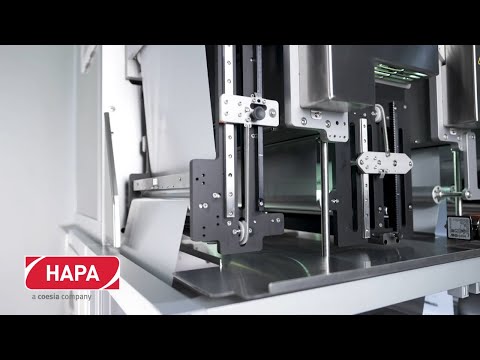

The Hapa 237-Hybrid is a modular UV printing system that combines the economical features of flexo technology with the full flexibility of digital Drop On Demand printing. The system is a standard solution from HAPA made for printing onto alumumium foil for blister machines. IN the current configuration the system is configured on a separate stand with a dedicated unwinder to print inline with a blister machine. The system can be reconfigured for top-mounting or roll-to-roll at additional costs. Utilizing UV-cured inks, it is ideally suited for pharmaceutical applications.

Installation and validation can be offered by PPS.

KEY ADVANTAGES
• Award-winning HMI also available as soft version for integration into host packaging machine interface
• Fully compatible with camera inspection systems
• Digital integration and system automation control via OPC UA
• Black or Pantone spot colors supported
• High speed, up to 35 meters per minute
• Ozone-free UV curing technology
• Format-free operation
• Automatic printhead cleaning system (DOD)
• Simple and accurate print mat mounting (Flexo) using location pins, no adhesive tape required
• Easy to handle, quick-change inking devices (Flexo)

Detailed Info:

Footprint:
Machine depth (mm)1387
Machine height (mm)2281
Machine length (mm)1020
Machine weight (kg)1075

Other technical features
Technological application: Blisters, Deep draw blisters, Trays, Pouches
Substrates: Aluminum foil, Paper-backed foil, Paper, PVC, Tyvek

Technical Data:
Max advance length (mm)350
Max printing width (mm)298
Max web width (mm)310
Min advance length (mm)90
Min web width (mm)70
Gkjdpfx Aoyr Imbophsa
Resolution (dpi)360
Max printing speed (m/min)35
