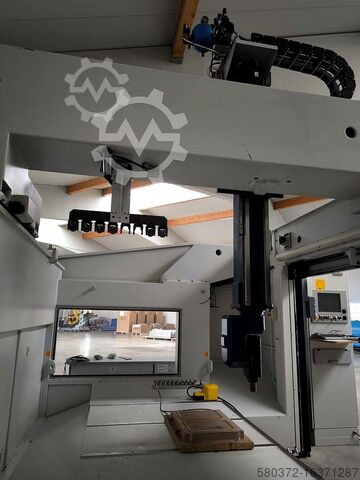

5-akset fræsemaskine

CMS NC ARES 36/18 TUCU

A 5-ton forklift is available for loading the machine parts. The machine must be dismantled before transportation.

TECHNICAL DETAILS
X-axis: movable support with gantry drive on both sides
Y-axis: movable carriage on the X-support
Z-axis: mounted on Y-slide, auto-stop in case of voltage drop
Travel X / Y / Z: 3,600 / 1,800 / 1,200 mm
Cube dimension (5-sided machining): 3,020 / 1,220 / 910 mm
B-axis: ± 135°
C-axis : ± 270°
Spindle speed: 3,000 - 27,000 rpm

Control: OSAI S10 510s
Spindle power: 6 kW from 18,000 rpm
Tool holder: ISO 30
Collet chuck: Type ETS 25 for shank diameters of 16 mm
Tool magazine: 8 stations, traveling

Table surface: 3,670 x 1,355 mm
Positioning accuracy X / Y / Z: 0.1 mm
Repeat accuracy X / Y / Z: 0.05 mm
Positioning accuracy C / B: 30 arcsec
Repeat accuracy C / B: 22 arcsec
Rapid traverse X / Y / Z: 80 / 80 / 70 m/min
Rapid traverse: B / C : 25 rpm

MACHINE DETAILS
Machine dimensions with/without Z-axis tower: 5740 x 3255 x 4480/2890 mm
Switch cabinet dimensions: 600 x 1630 mm
Connected load: 25 kVA
Supply voltage: 400 V ± 5%, 50 Hz ± 5%
Total weight: 7.5 t

EQUIPMENT
- Liquid cooling by means of cooling unit
- Control panel
- Dynamic tool control software
- CMS portable control keyboard
- Teach-in system: joystick
- Teach-in software: Power arm for recording points on sample pieces in order to generate machining paths from them
- Vacuum system
- Compressed air system
- Suction connection
- Central lubrication
